The company's production and manufacture of the removal of snail mud dewatering machine, has now formed 21 types of specifications and models to adapt to different sludge treatment and different needs of customers.

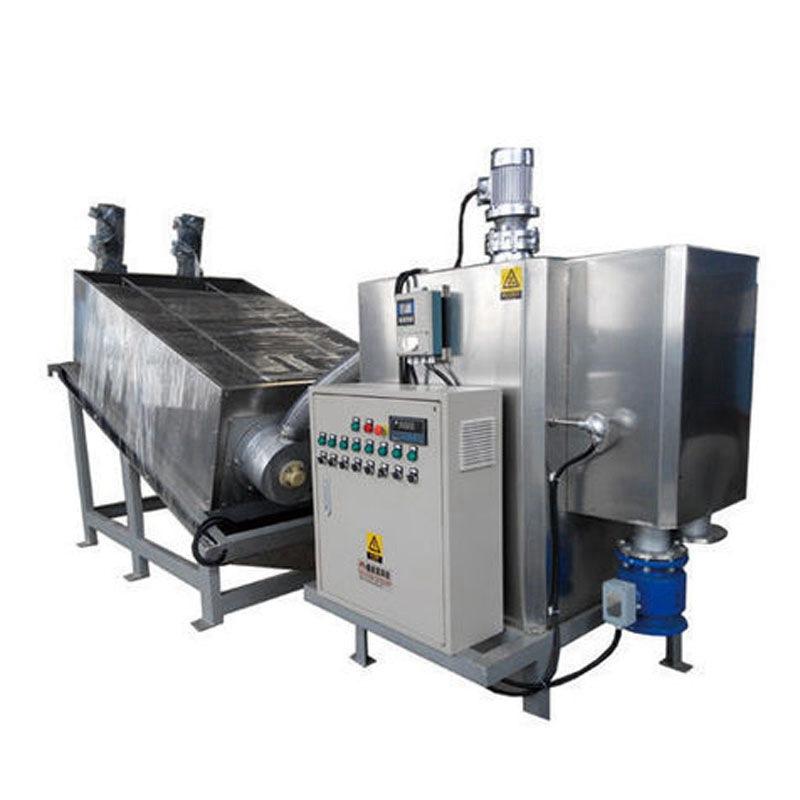

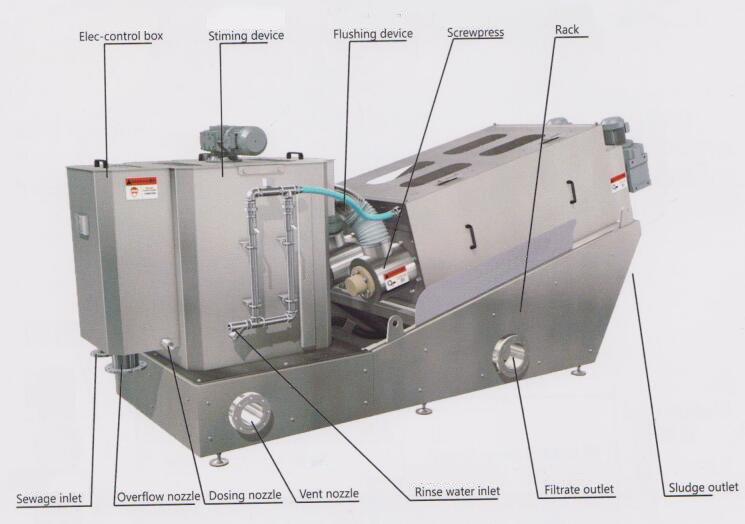

Sludge dewatering machine integrates automatic control cabinet, sludge thickening dewatering body and collecting liquid in body. It can realize high-efficiency flocculation under fully automatic operation sacrificial parts, and continuously complete sludge thickening and jade pressing dewatering.

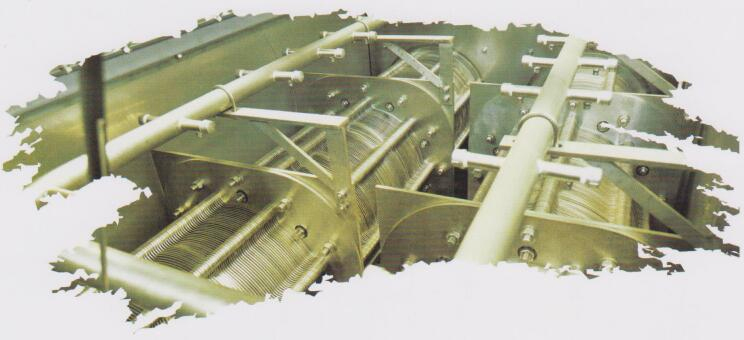

Working principle

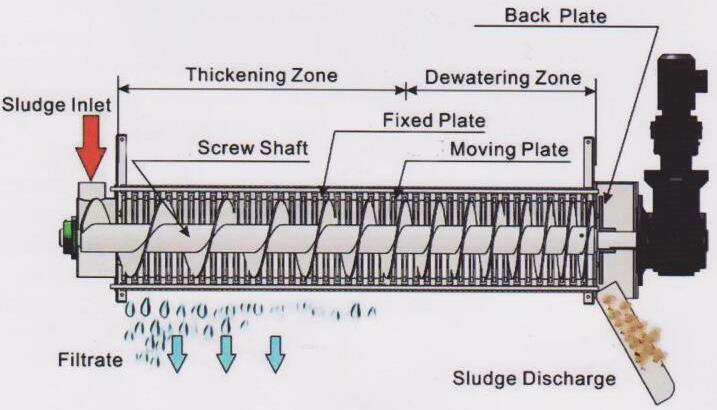

When the equipment is running, the sludge is pushed into the filter barrel from the inlet to the discharge outlet by the spiral spindle. As the pitch between the spiral spindles is gradually reduced, the pressure on the sludge increases and dewatering begins under the action of pressure difference. Water flows out from the filter gap between the fixed plate and the movable plate. At the same time, the equipment relies on the self-cleaning function between the fixed plate and the movable plate. Clean the filter clearance to prevent clogging. After sufficient dehydration, mud cake is discharged from the discharge outlet under the push of the screw shaft.
Main features
1.Simple process flow, high efficiency and energy saving of sludge dewatering, low system investment.
2.The system can be programmed to make the operation convenient and accurate.
3.Unique flocculant makes sludge dewatering easier.
4.Equitable and accurate dispensing, saving operation cost.

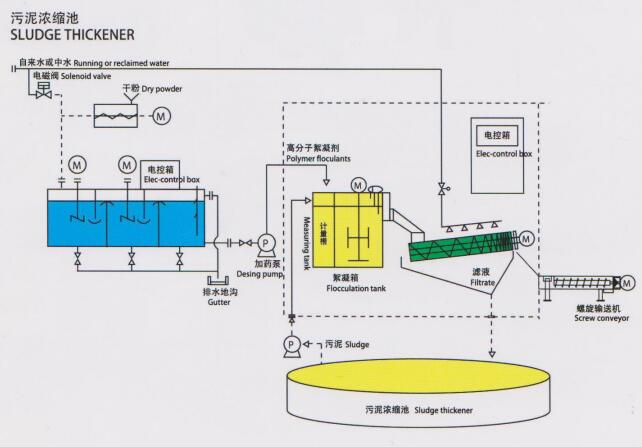

Flow chart

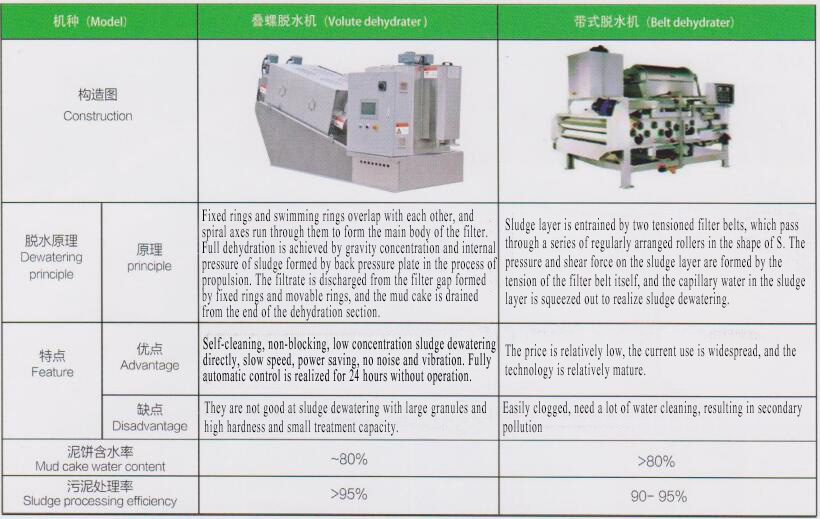

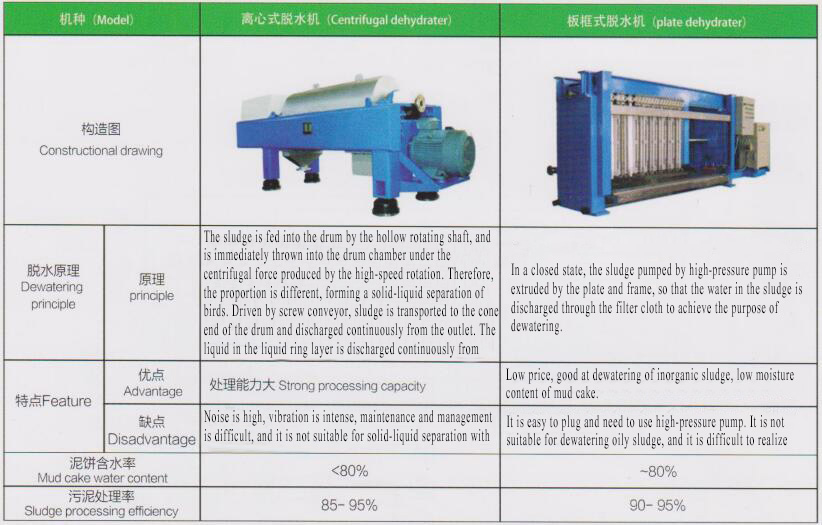

Contrast of Superiority of Laminated Oncomelania

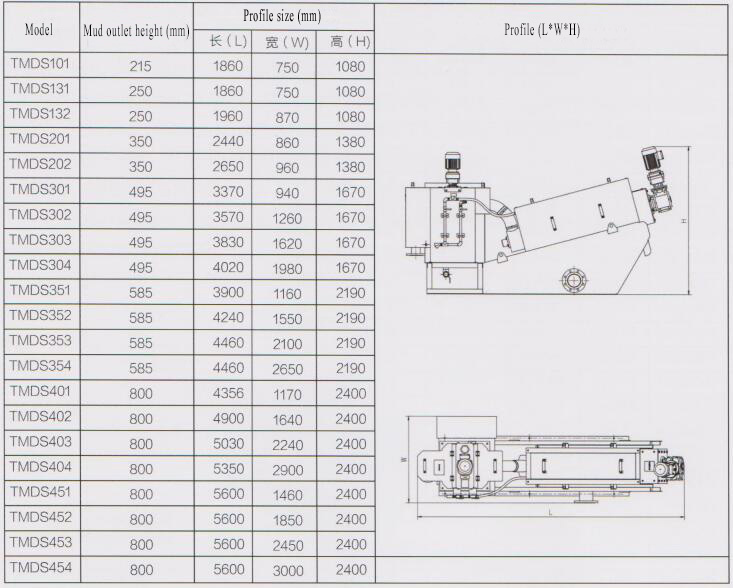

Equipment Selection
Note: Sewage concentration is less than 10 000 mg/L. It is suggested that sedimentation and concentration should be carried out, while sewage concentration is more than 25 000 mg/L. It is suggested that dilution should be carried out.
Operating Conditions
Application occasions and advantages
It is suitable for municipal sewage, petroleum refining, leather brewing, printing and dyeing, animal husbandry, coal chemical beneficiation, biochemical pharmaceuticals, steel pickling, chemical sugar making, food processing, etc.
1. Low operating cost: equivalent to less than 40% of belt filter press, equivalent to less than 20% of centrifugal dehydrator.
2. Power saving: less than 5% of centrifuge
3. Water saving: less than 0.1 of belt filter press
4. Provide medicine: save medicine by 60% on average.
5. Small size: investment in dewatering machine room saves more than 60% of mud.
6. No clogging: the negatives of greasy fibre sludge.
