Overview and working principle:
Internal water inlet microfilter, also known as rotary microfilter, is suitable for solid-liquid separation in industrial wastewater. It can remove sewage with suspended particles larger than 0.2mm. The sewage is evenly distributed into the rotating mesh cylinder by buffer inlet pipe, and the retained sewage is discharged through the other end through the synchronous rotation of the mesh cylinder and the inner wall slag guide screw. It is discharged from the gap of the mesh barrel.
Characteristic:
1. Distribution of water is uniform and treatment capacity is large.
2. Drive stably through gear and slewing support.
3. Prevent clogging of filter screen with backwashing device;
4. There are spillproof boards on both sides to prevent splashing of sewage.

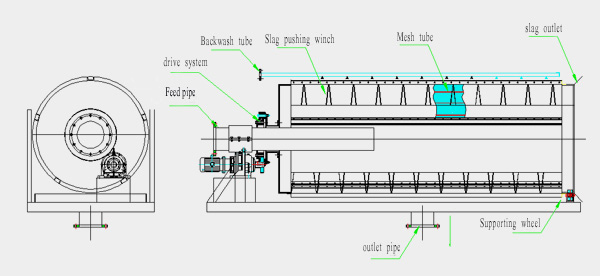

Contour sketch:
Table Technical parameters table
Parametric Number | Cylinder diameter (mm) | Cylinder length (mm) | Mesh size (mm) | Removal rate |
particle size＞0.75mm | particle size＞0.37 |
FLNWL-600 | Ø600 | ＞1500 | 0.5~2 | 90% | 50% |
FLNWL-800 | Ø800 | ＞2200 |
FLNWL-1000 | Ø1000 | ＞2600 |
FLNWL-1200 | Ø1200 | ＞3000 |
FLNWL-1500 | Ø1500 | ＞3500 |
Note: The form is listed as the conventional parameters and models, and you can consult the company's technical personnel.
