Applications
Key Product Advantages
Ordered Microstructured Membrane Pores
Gradient pore structure achieves 0.03 μm filtration precision, with high permeability and stable filtration efficiency.
Ultra-Hydrophilic & Anti-Fouling
In-situ hydrophilic modification minimizes contaminant adhesion. Better fouling resistance extends membrane service life.
High Mechanical Strength
Optimized thermal spinning + high crystallinity reinforcement. Great toughness and elongation, reliable during long-run operation and cleaning.
High Water Flux
Optimized membrane structure boosts water transport, cuts operating pressure and raises system throughput.
Long Service Life
PVDF material delivers outstanding chemical stability for harsh water treatment environments.

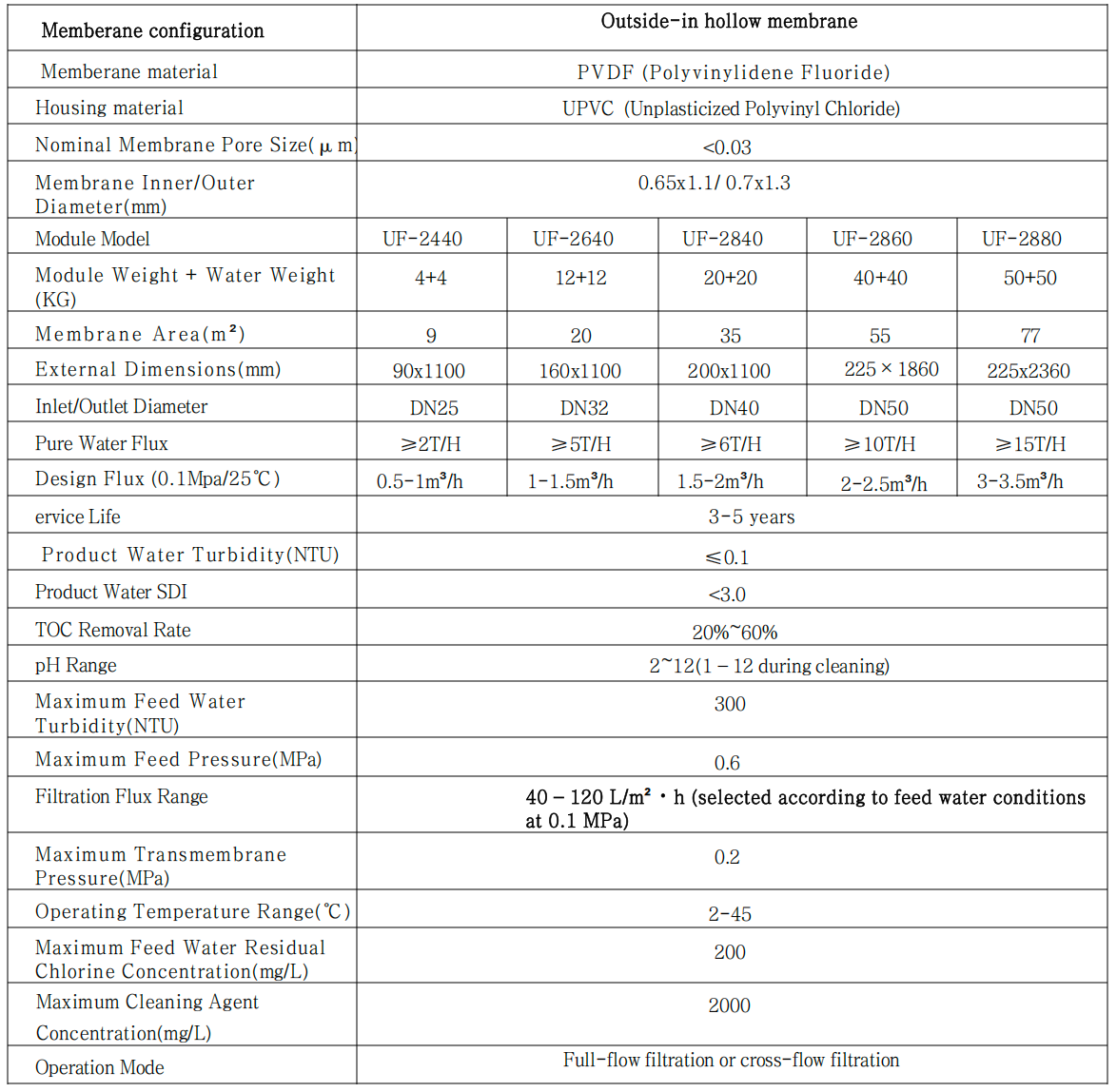

Technical Features
Outside-in Hollow Fiber Design
Feedwater flows into the outer surface of hollow fibers and passes through the membrane layer for efficient solid-liquid separation.
High-performance PVDF Material
Excellent chemical resistance
High mechanical strength
Superior oxidation resistance
Stable long-term operation
Multiple Module Sizes

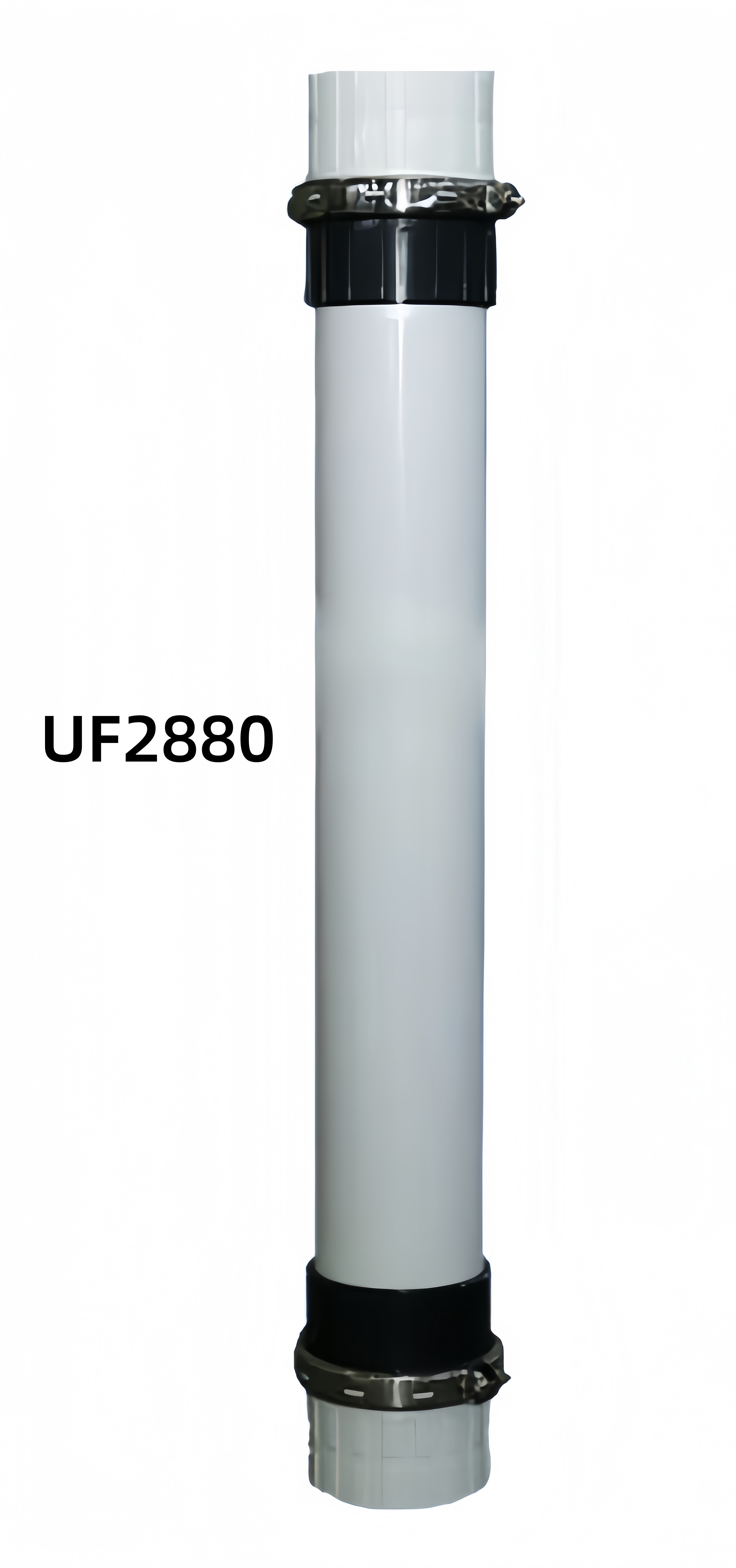

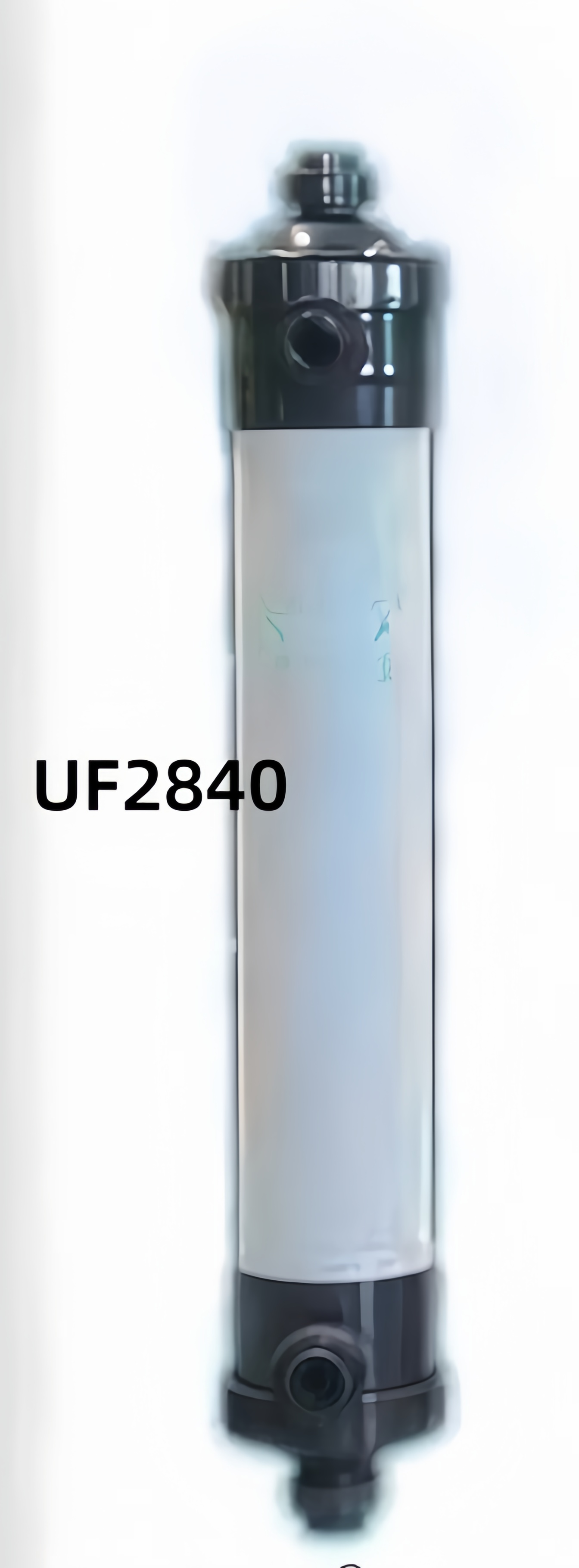

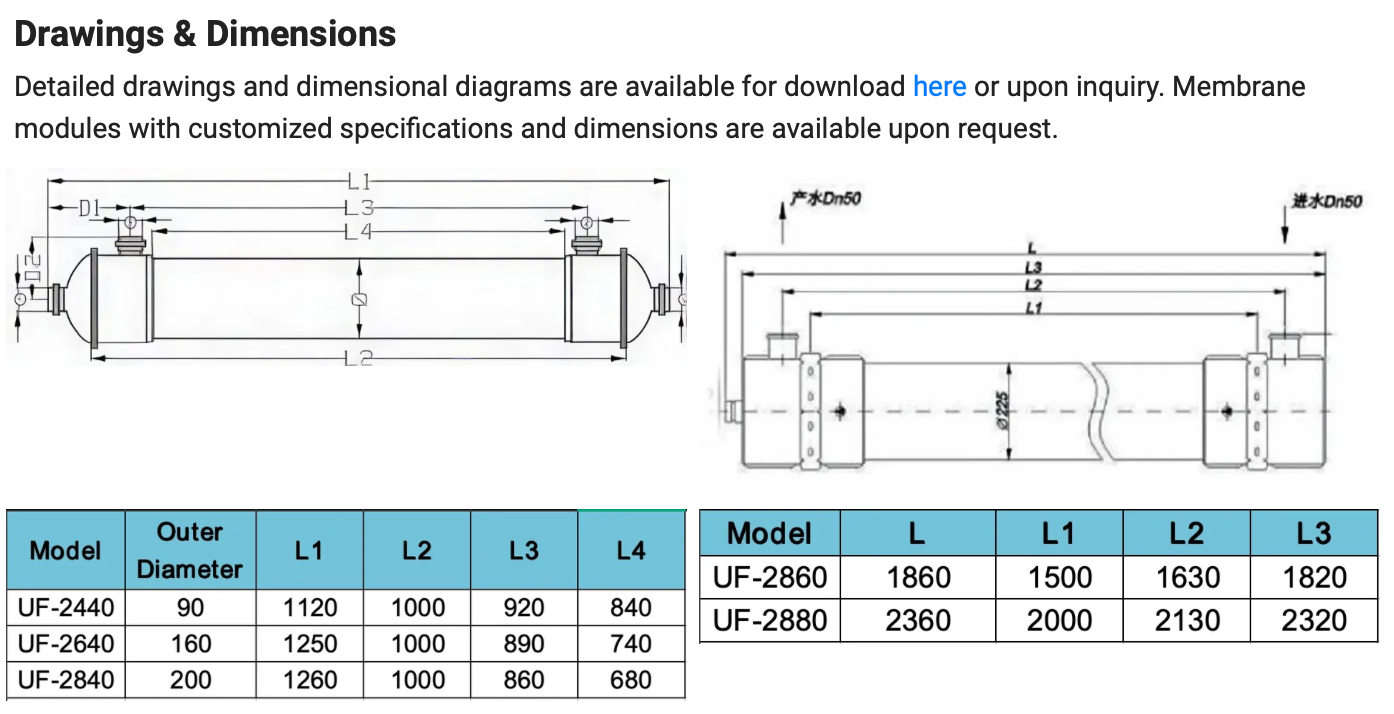

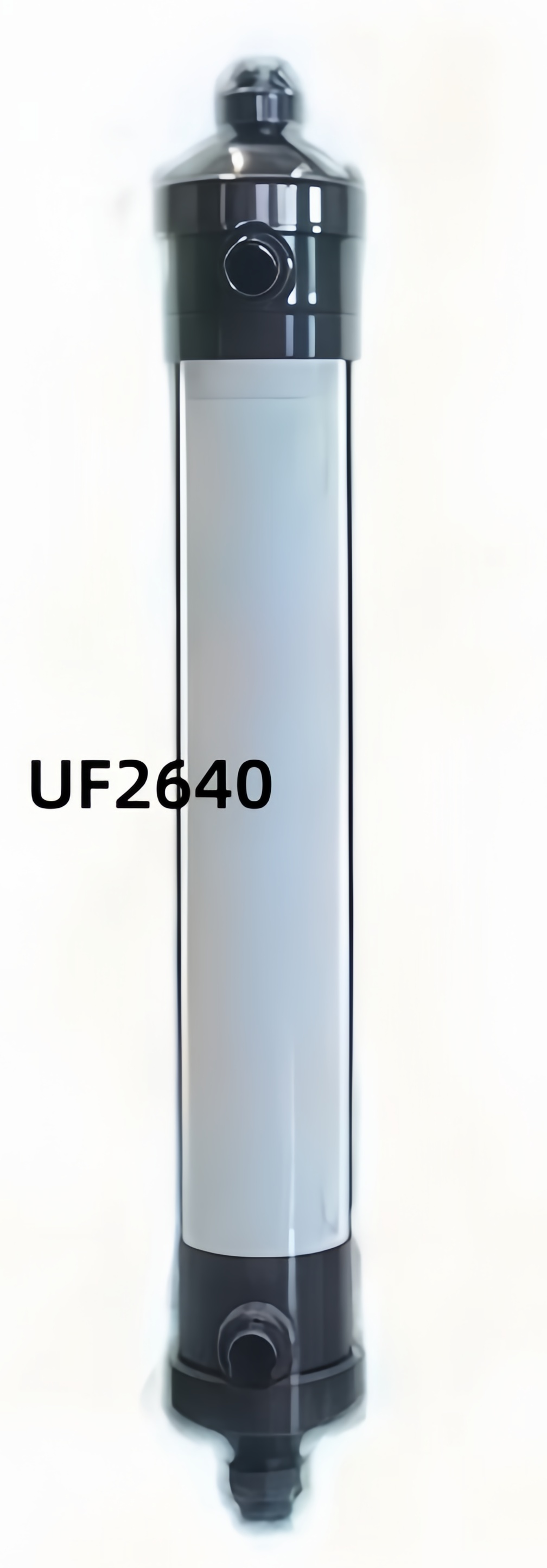

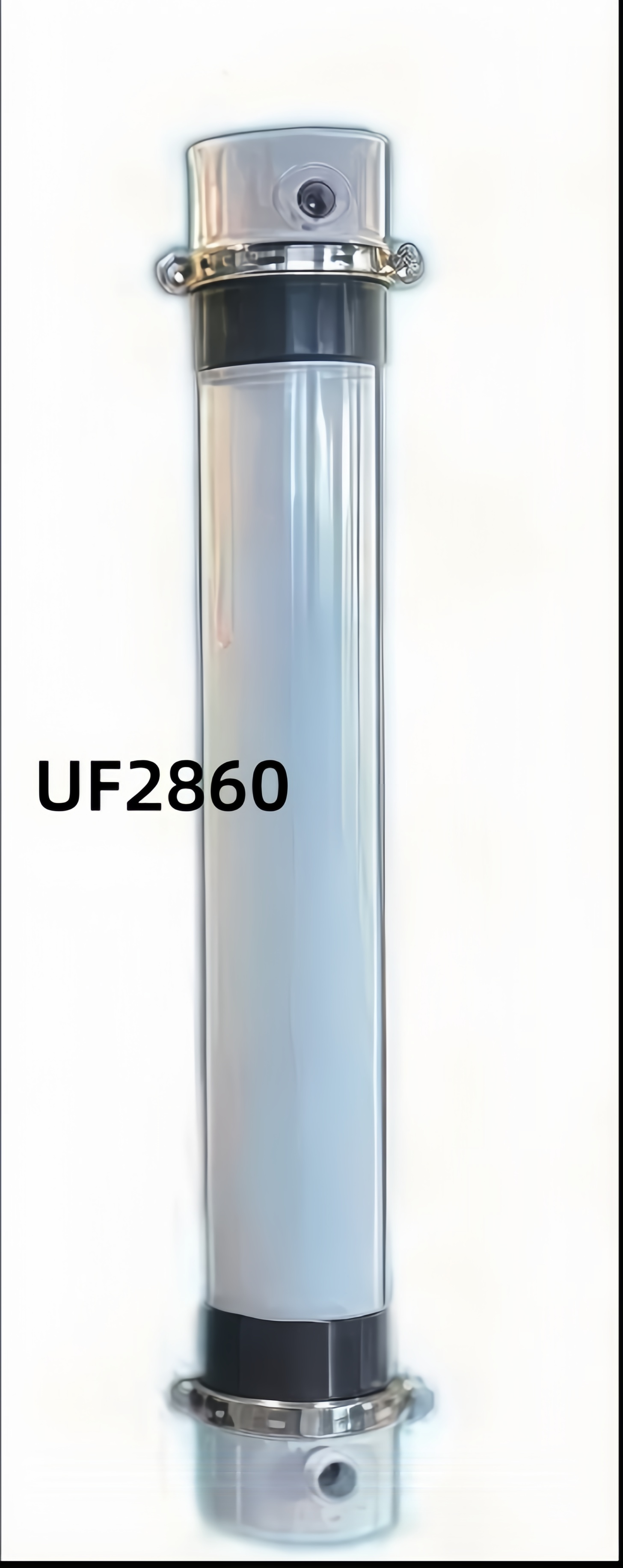

Available models: UF-2440, UF-2640, UF-2840, UF-2860, UF-2880
Covers a wide range of treatment capacities.
