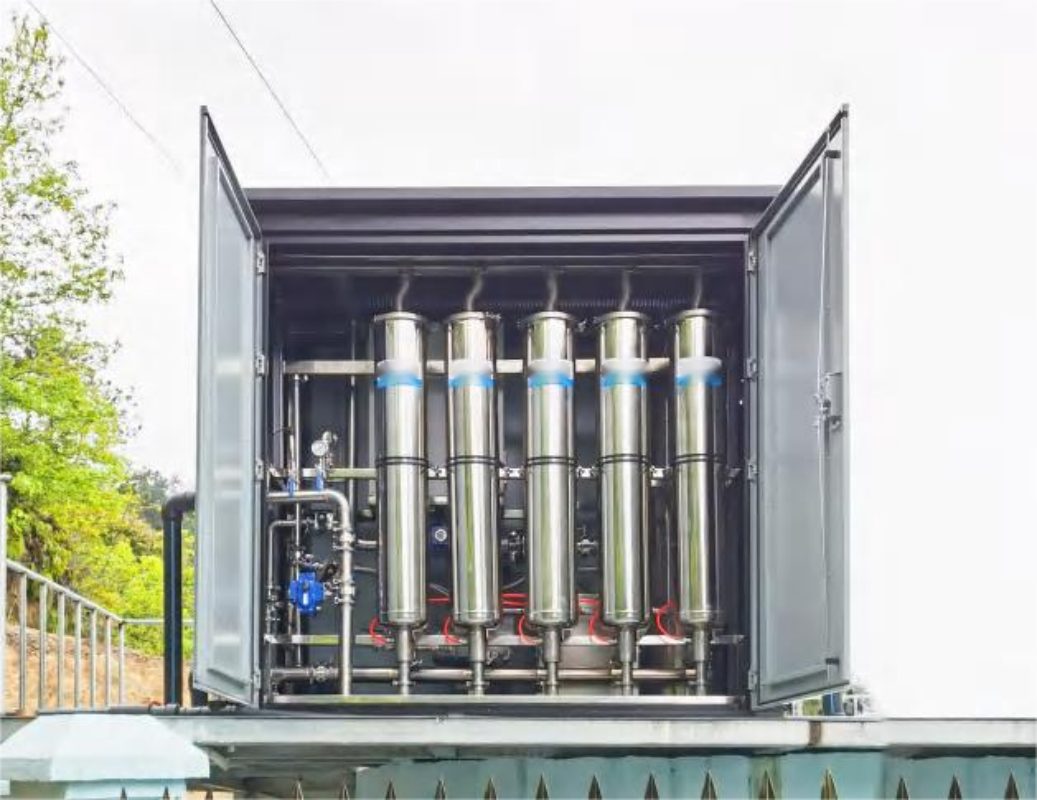

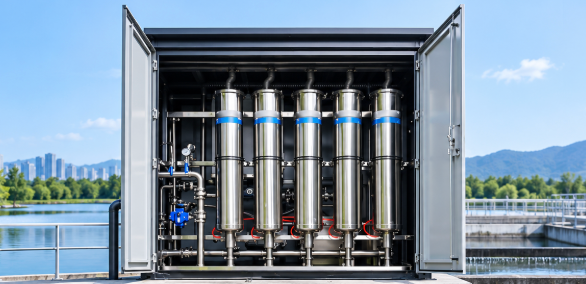

A compact ultrafiltration system designed for reliable drinking water treatment with low energy consumption.
Free-end PVDF hollow fiber membranes, automatic cleaning and remote monitoring ensure easy and stable operation.A compact ultrafiltration system designed for reliable drinking water treatment with low energy consumption.
Free-end PVDF hollow fiber membranes, automatic cleaning and remote monitoring ensure easy and stable operation.
| Availability: | |
|---|---|
| Quantity: | |
Gravity Pure 02
0.03 μm
Filtration Accuracy
2–30 m³/h
Treatment Capacity
Low Energy
Operation
Remote
Monitoring

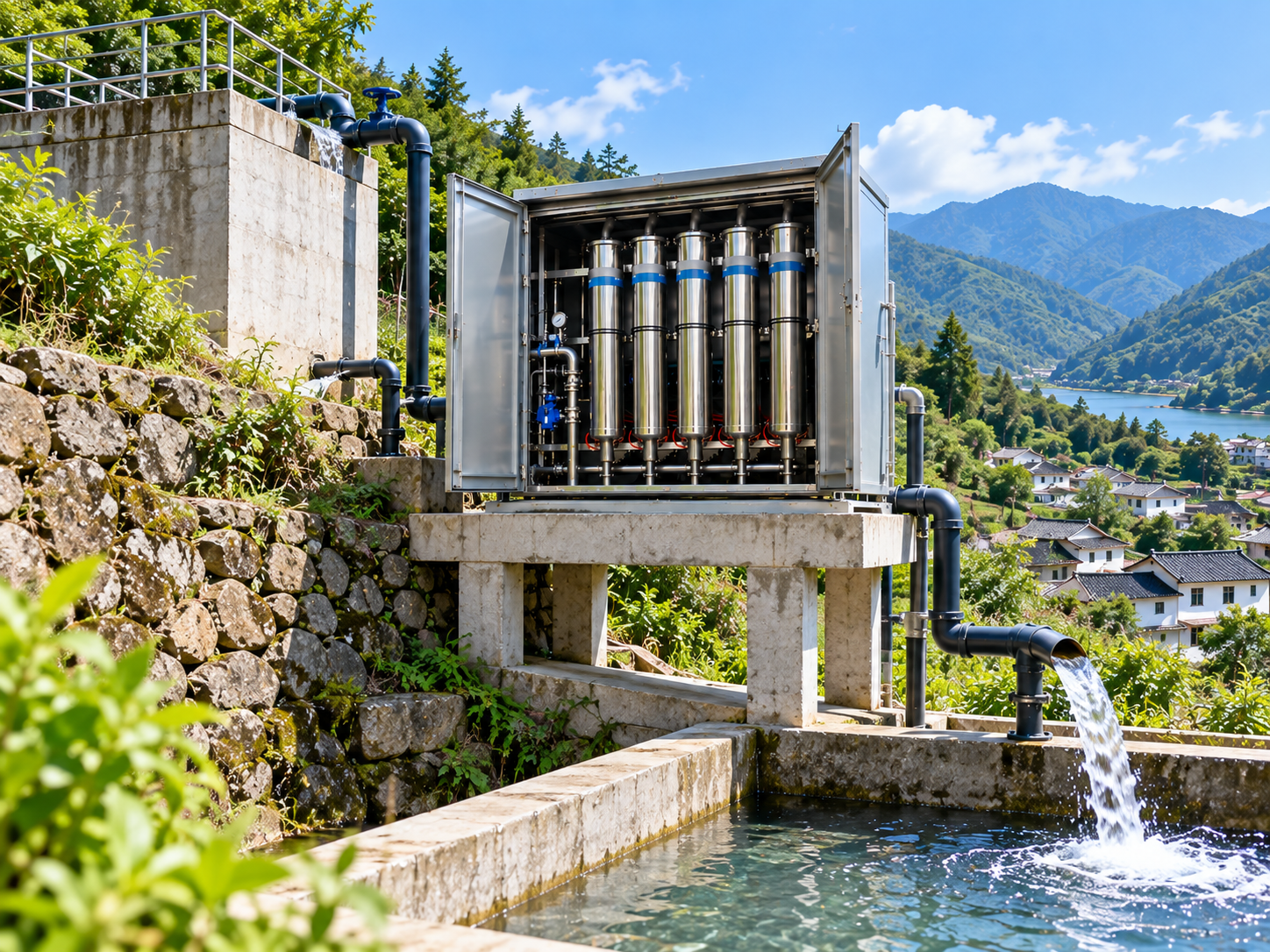

Rural Drinking Water
Village & Township Water Supply
Municipal Water Treatment
Industrial Water Treatment
⚡ Low Energy Easy Maintenance Strong Antifouling▣ Smart Operation

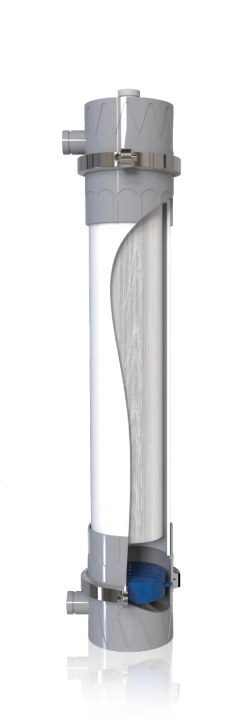

Free-End UF Membrane
Smoother flow path
0.03 μm PVDF Membrane
Fine ultrafiltration
Pulse Air Scouring
Efficient membrane cleaning
Modular Design
Easy installation & expansion
Available Models
Model | Capacity | Footprint | Area |
MUF-2 | 2 m³/h | 1 × 1.5 m | 1.8 m² |
MUF-5 | 5 m³/h | 1 × 2.5 m | 4 m² |
MUF-10 | 10 m³/h | 2 × 3.5 m | 6.3 m² |
MUF-15 | 15 m³/h | 2.5 × 3.5 m | 10.3 m² |
MUF-20 | 20 m³/h | 2.5 × 3.5 m | 10.3 m² |
MUF-25 | 25 m³/h | 2.5 × 3.5 m | 10.7 m² |
MUF-30 | 30 m³/h | 2.5 × 3.5 m | 15.3 m² |
Common Specifications:
Parameter | Specification |
|---|---|
Membrane Material | PVDF |
Membrane Type | Hollow Fiber UF |
Filtration Accuracy | 0.03 μm |
Membrane Structure | Free-End |
Max. Feed Pressure | 0.3 MPa |
Max. TMP | 0.2 MPa |
Operating pH | 5–9 |
Cleaning pH | 1–12 |
Operating Temperature | 5–45°C |
Cleaning | Backwash + Pulse Air Scouring |
Monitoring | Remote Digital Monitoring |
