2660/2860/2880/6060A/8060A/8080A
High-performance outside-in hollow fiber UF membrane with a pore size below 0.02 μm. Designed for high flux, reliable filtration and long-term operation.
Industrial Wastewater
Water Reuse
RO Pretreatment
Power & Energy
Municipal Water Treatment
New Energy Industry
High Flux
Up to >800 L/m²·h*
Fine Filtration
Pore size <0.02 μm
High Strength
Single fiber strength >5.0 N*
Excellent Antifouling
Stable long-term operation
Graphene Alloy PVDF
Enhanced membrane performance

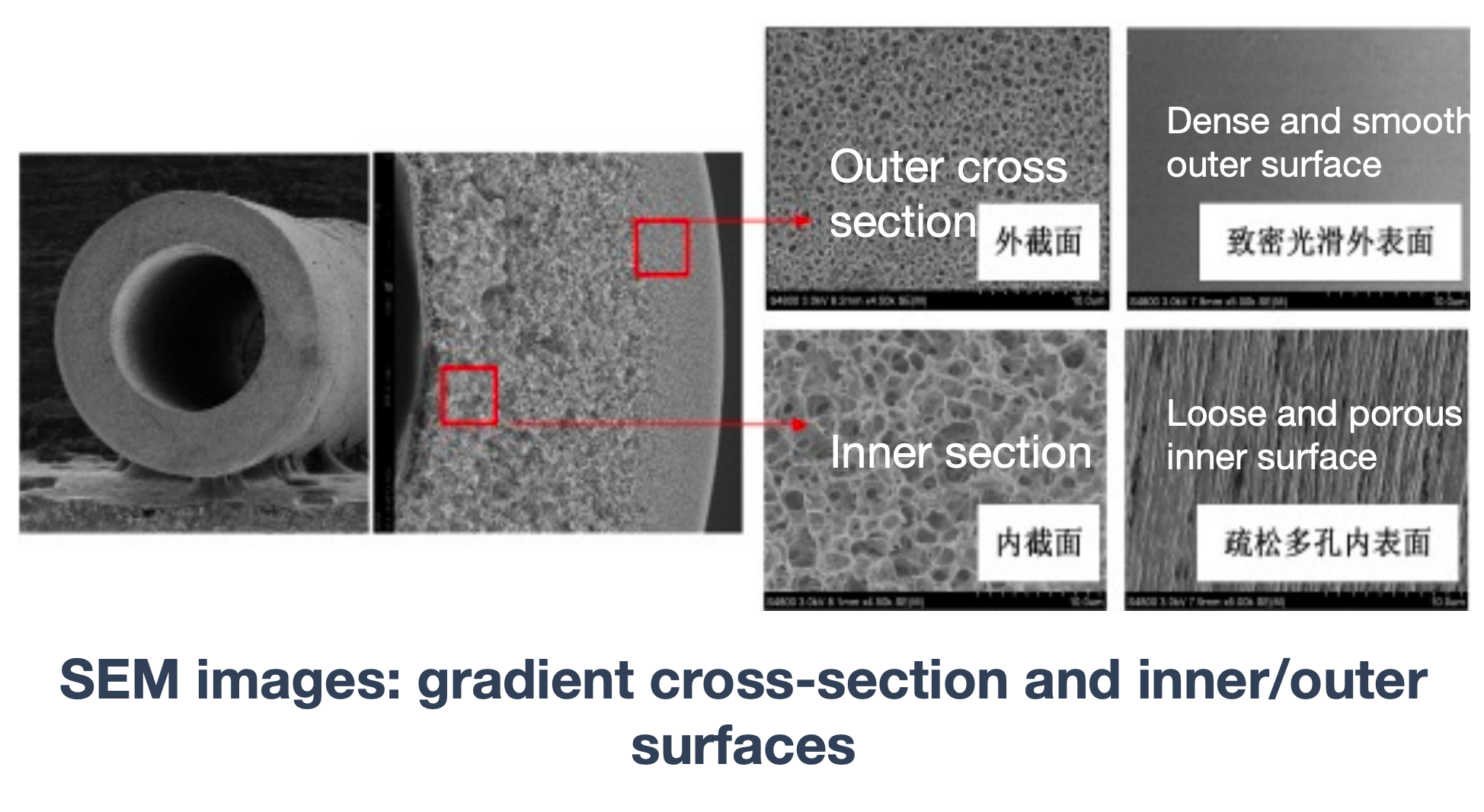

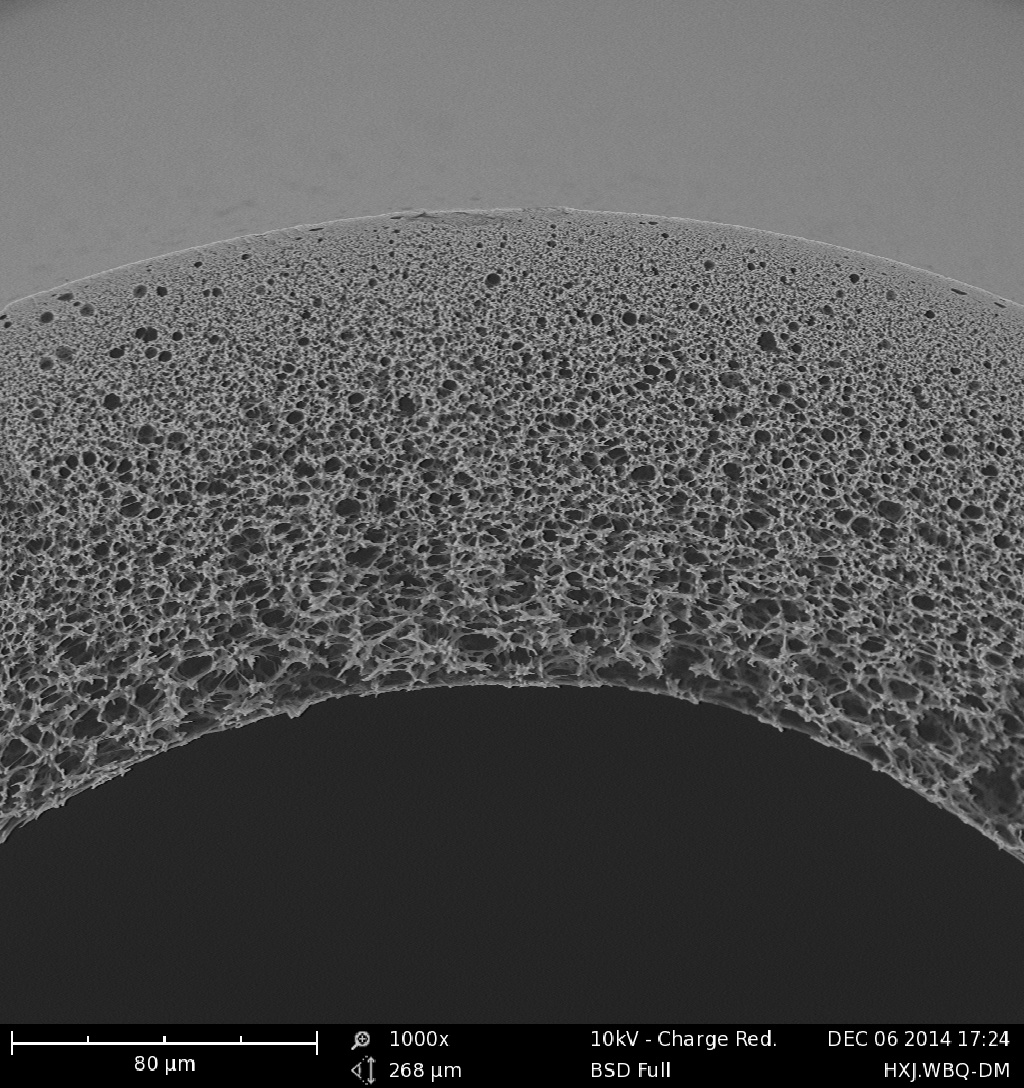

Gradient Pore Structure
Dense outside, porous inside
Outside-in Filtration
Efficient filtration & backwashing
Membrane Options
Lan-MEM | G-MEM | |
Type | PVDF-GO | PVDF-GH |
Material | PVDF + Graphene Oxide | PVDF + Graphene Black |
Pure Water Flux | >600 L/m²·h | >800 L/m²·h |
Fiber Strength | >4.5 N | >5.0 N |
Elongation | >250% | >300% |

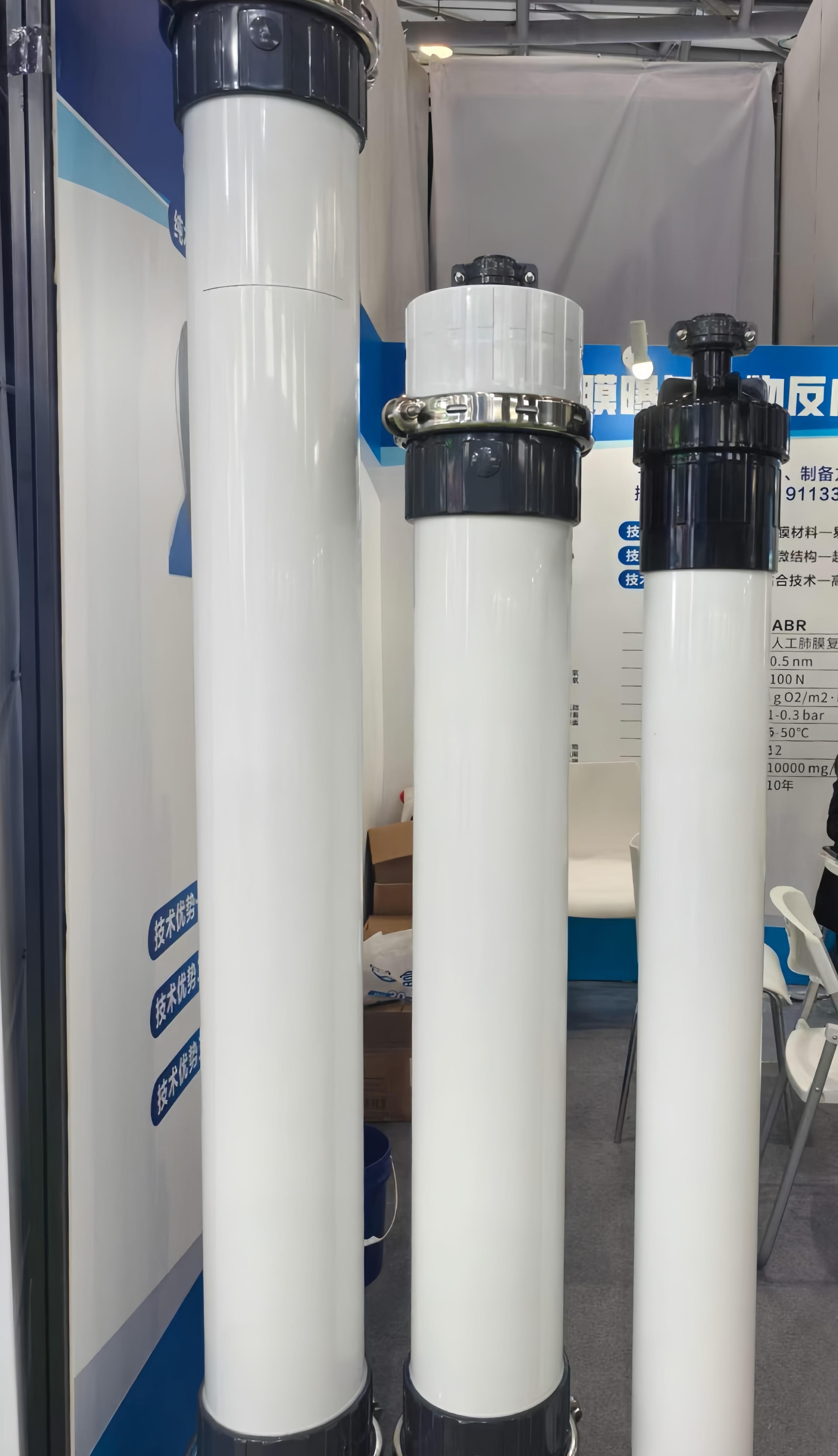

Available Module Models
Model | Area | Dimensions |
|---|---|---|
2660 | 33 m² | Φ165 × 1860 mm |
2860 | 55 m² | Φ225 × 1860 mm |
2880 | 77 m² | Φ225 × 2360 mm |
6060A | 35 m² | Φ160 × 1736 mm |
8060A | 55 m² | Φ225 × 1757 mm |
8080A | 75 m² | Φ225 × 2257 mm |
Pore Size: <0.02 μm
**Operating Flux:** 40–120 L/m²·h
**Max. Operating Pressure:** 6.0 bar
**Product Water Turbidity:** ≤0.1 NTU
**SDI:** ≤3
**Bacteria Removal:** >99.9999%
