Channel Width(Max): 3m
Channel Depth(Max): 10m
Filtering gap: 1, 3, 5, 10, 15, 20mm, etc.
Inclination referred to vertical:60°~80°
The teeth belt cleaning the screening continuously and cuttingdown most of the polluting load
The teeth are made of plastic material (nylon) . Stainless steelSS304 or SS316L is available as option.
Material of frame can be made of either carbon steel, galvanizedsteel or stainless steelL
Capacity of one unit is up to10, 000 m3/h

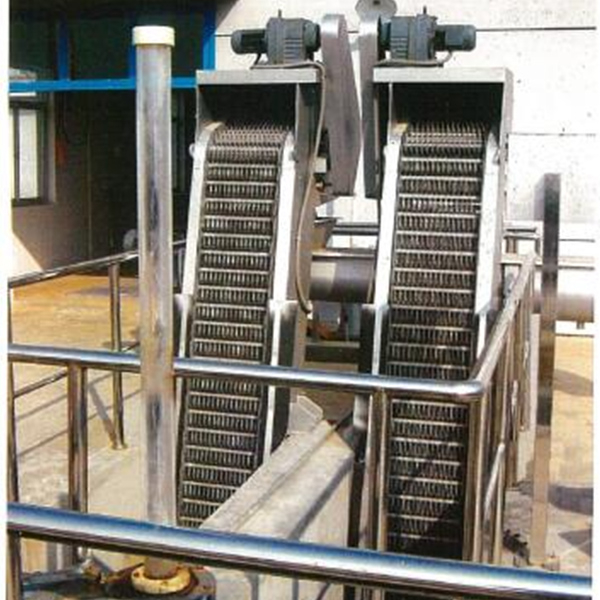

Mechanical grating
Mechanical grid is a special water treatment equipment that can continuously and automatically intercept and remove sundries of various shapes in the fluid, which can be widely used in urban sewage treatment.
Product introduction:
At the same time, it can also be used as the front screening equipment in the wastewater treatment process of textile, food processing, papermaking, leather and other industries. It is one of the most advanced solid-liquid screening equipment.
Product working principle:
The mechanical grid drawing is a group of rotary grid chains assembled by a unique rake tooth factory. Driven by the motor reducer, the rake chain rotates against the water flow direction.
When the rake tooth chain is transported to the upper part of the equipment, due to the guidance of the grooved wheel and the curved rail, there is a relative self-cleaning movement between each group of rake teeth, and most solid substances fall by gravity. The other part cleans the sundries adhered to the rake teeth by the reverse movement of the sweeper.
According to the water flow direction, the rake tooth chain is similar to the grid, and the rake tooth clearance assembled on the rake tooth chain shaft can be selected according to the service conditions. When the rake teeth separate the solid suspended solids in the fluid, it can ensure the smooth flow of water. The whole working process is continuous or intermittent.
Product features:
The biggest advantages of the equipment are high degree of automation, high separation efficiency, low power consumption, no noise and good corrosion resistance. It can ensure continuous and stable operation when unattended. It is equipped with overload safety protection device, which will automatically shut down in case of equipment failure, so as to avoid overload operation of the equipment. The equipment can arbitrarily adjust the equipment operation interval according to the needs of users to realize periodic operation; It can be automatically controlled according to the liquid level difference before and after the grid; It also has manual control function to facilitate maintenance. Users can choose according to different work needs.
Due to the reasonable structural design of the equipment, when the equipment is working, it has strong self purification ability and will not be blocked, so the daily maintenance workload is very small.

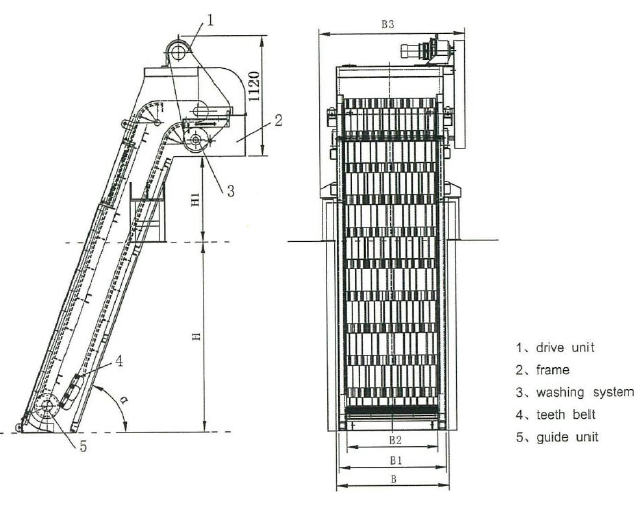

FH Type Mechanic screen
H | [2.5 5 7.5] (m) | gap ( mm ) | Screen Width (B 1) | Channel Width (B) |
1 | 3 | 5 | 10 | 15 |
Model | Power supply(KW) | Flow rate (m3/h) |
FH-300 | 0.37 | 150 | 300 | 450 | 460 | 460 | 300 | 400 |
FH-400 | 170 | 340 | 420 | 510 | 540 | 400 | 500 |
FH-500 | 0.55 | 240 | 480 | 590 | 730 | 750 | 500 | 600 |
FH-600 | 308 | 620 | 764 | 920 | 960 | 600 | 700 |
FH-700 | 360 | 720 | 930 | 1124 | 1160 | 700 | 800 |
FH-800 | 0.75 | 440 | 880 | 1080 | 1330 | 1420 | 800 | 900 |
FH-900 | 550 | 1024 | 1250 | 1450 | 1580 | 900 | 1000 |
FH-1000 | 580 | 1160 | 1450 | 1760 | 1830 | 1000 | 1100 |
FH-1100 | 1.1 | 650 | 1310 | 1670 | 2000 | 2080 | 1100 | 1200 |
FH-1200 | 710 | 1470 | 1750 | 2080 | 2250 | 1200 | 1300 |
FH-1300 | 1.5 | 780 | 1560 | 1820 | 2160 | 2310 | 1300 | 1400 |
